| Lieu d'origine: | Chine |
|---|---|
| Nom de marque: | fanryn |
| Certification: | BS476, EN13501 12018, CE |
| Numéro de modèle: | Panneau de plafond en fibre de verre |
| Quantité de commande min: | 1 * 40hq |
| Prix: | 0.5-3$ per square meter |
| Détails d'emballage: | Sachet de carton ou en plastique |
| Délai de livraison: | 10-15 jours |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | Nous pouvons produire 1*40HQ dans un délai de 10 à 15 jours |
| Coefficient d'absorption du son: | 0.8-0.9 | Densité: | 70-130 kg/m³ |
|---|---|---|---|
| Matériel: | Laine de verre | Impact environnemental: | Recyclable et écologique |
| Épaisseur: | 15 mm, 20 mm, 25 mm. Je ne sais pas. | Application: | Isolation thermique des bâtiments, équipements industriels |
| Méthode d'installation: | ◆utilisez des grilles exposées, largeur des grilles : 15 mm ou 24 mm ◆les carreaux sont faciles à co | Résistance au feu: | Incombustible, classe A |
| Conductivité thermique: | >=0,4(m2.k/w) | Absorption d'eau: | <1% |
| Mettre en évidence: | fireproof fiberglass ceiling tile,eco-friendly acoustic insulation panels,square fiberglass ceiling tiles |
||
Products Description

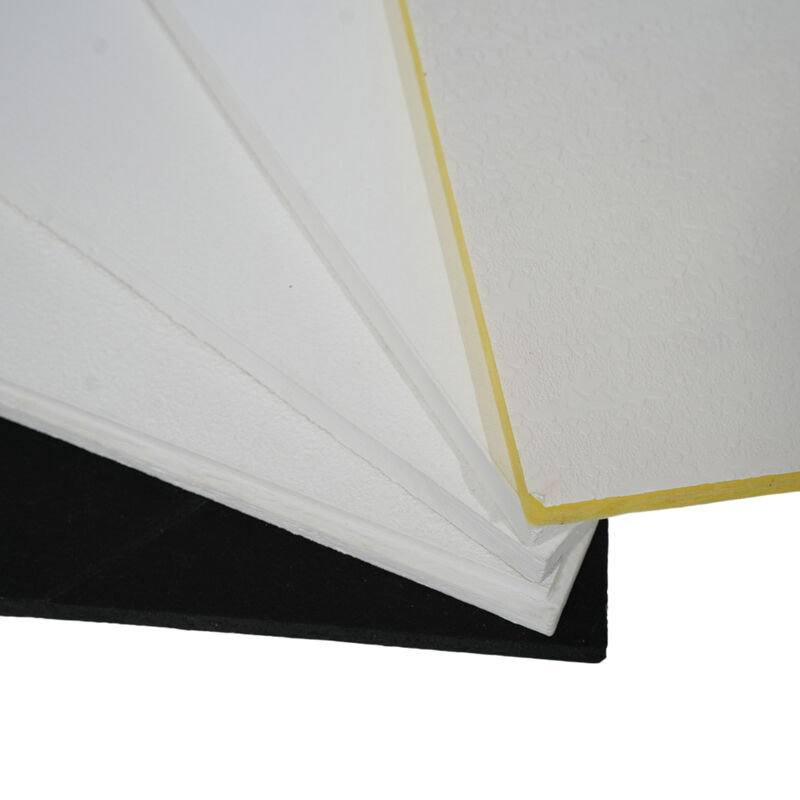

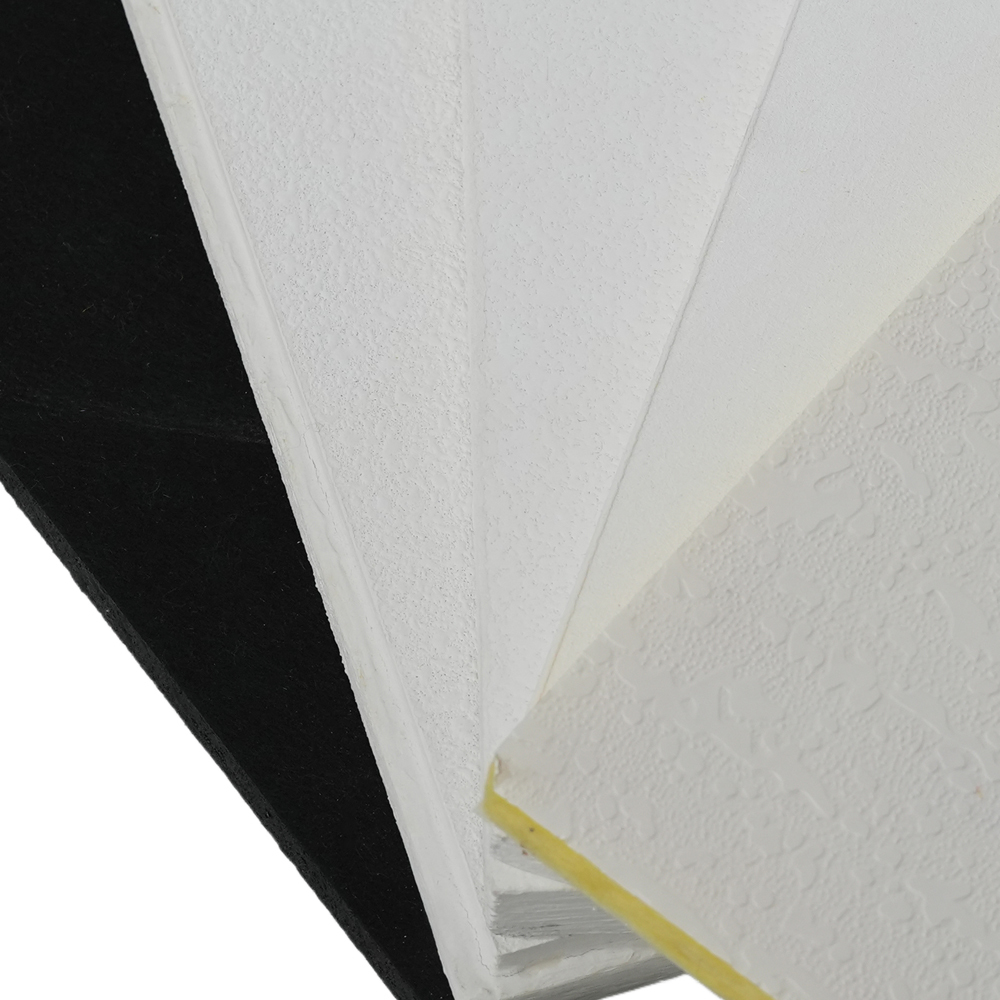

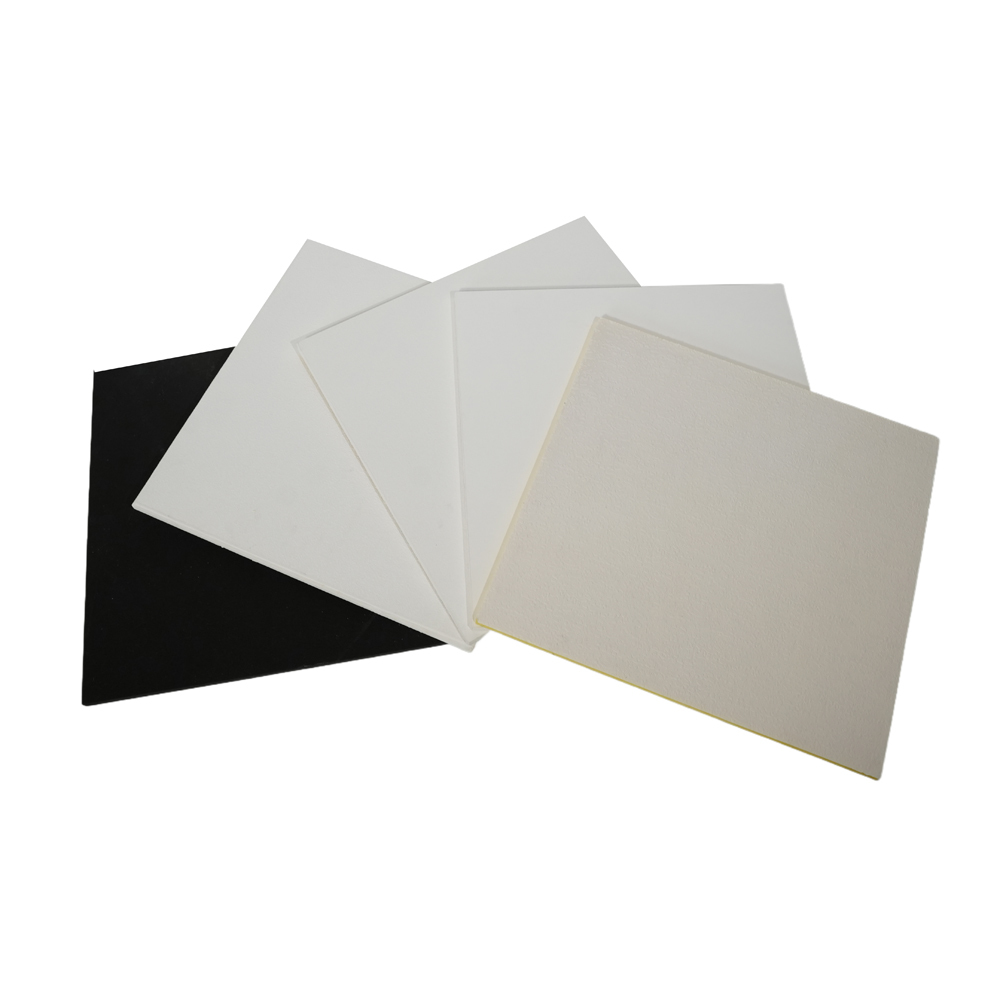

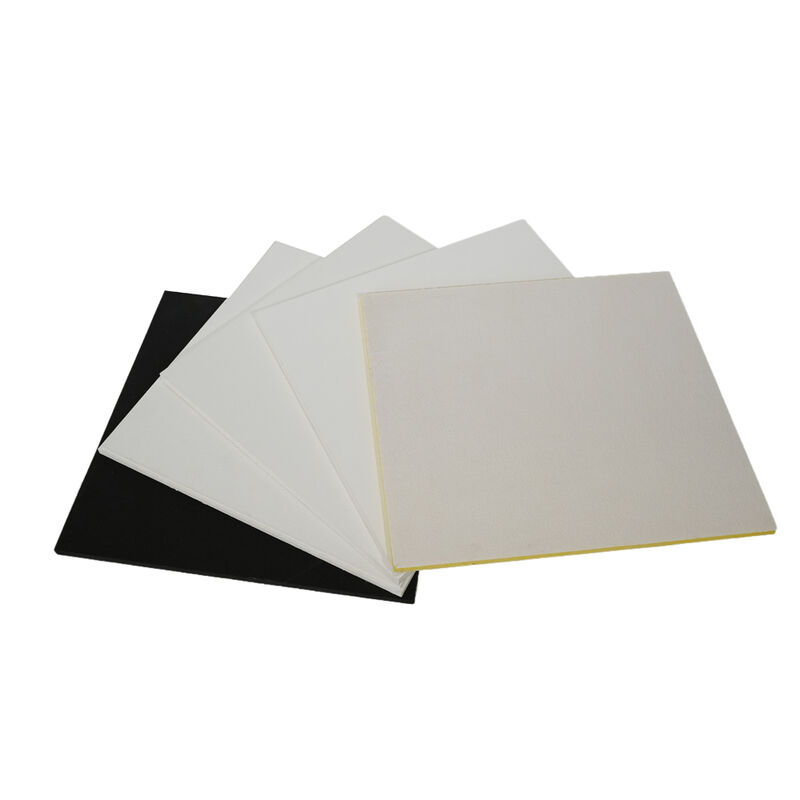

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.
![]()
![]()
![]()
Product feature of the fiberglass ceiling panel
-Non-Combustible Safety: Certified as an inherently fire-resistant material, it provides reliable protection and ensures full compliance with the most stringent building safety standards and fire codes.
-Exceptional Dimensional Stability: Engineered to resist sagging, warping, or delamination over time, it maintains long-term structural integrity and a consistently flat, seamless installed appearance for the life of the installation.
-Superior Acoustic Performance: Delivers excellent sound absorption, significantly enhancing acoustic comfort and effective noise control in a wide range of interior environments, from offices to residential spaces.
-Eco-Conscious Building Material: Classified as a premier green building product, it supports sustainable construction practices and contributes directly to environmental certification goals such as LEED and BREEAM.
-Versatile Aesthetic Finishes: Available laminated with decorative fiberglass tissue or PVC facing, offering both durability and design flexibility to meet diverse architectural and interior design requirements.
Product Specifications
|
Material |
|
|
Density |
90-130kg/m3 |
|
Face |
Painting laminated with decorative fiberglass tissue or PVC facing |
|
Color |
White, black and others to order |
|
Fire-resistant |
Class A |
|
Thermal-resistant |
≥0.5 (m2·k/w) |
|
NRC |
0.9-1.0 |
|
Humidity |
Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
|
Moisture rate |
≤1%(JC/T670-2005) |
|
Environmental impact |
Tiles and packing are fully recyclable |
|
safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Packing and Loading Quantity for Containers
|
SIZE |
CARTON/40HQ |
PIECES/CARTON |
M2/40HQ |
|
600*600*15MM |
532 |
20 |
3830.4 |
|
600*1200*15MM |
266 |
20 |
3830.4 |
|
600*600*20MM |
532 |
15 |
2872.8 |
|
600*1200*20MM |
266 |
15 |
2872.8 |
|
600*600*25MM |
532 |
12 |
2298.24 |
|
600*1200*25MM |
266 |
12 |
2298.24 |
Installation
![]()
-use exposed grids, grids width:15mm or 24mm
-tiles are easy to trim and install
-both inches and centimeters grids are available
Product application
classrooms, offices, shopping center, etc.
![]()
Main Facing:
![]()
![]()
![]()
![]()
Production packing of the glass wool board
Carton or plastic bag
Note: OEM is acceptable
![]()
