Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes
Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes
Informations de base
Lieu d'origine: Chine
Nom de marque: FANRYN
Détails d'emballage: Sac en plastique
Délai de livraison: 10 jours ouvrables
Conditions de paiement: T/T
meilleur prix Contactez
Détail Infomation
Absorption: 0.95 NRC Dimension: Personnalisable
Plage de température: -200°C à 650°C Application: Isolation du bâtiment
Densité: 10-100 kg / m3 Matériel: Laine minérale
Conductivité thermique: 0,035 w / mk Couleur: jaune
Résistance au feu: Classe A1 Taper: Isolation thermique
Résistance à la traction: 40-150 kPa Impact environnemental: Une empreinte carbone réduite
Résistance à la compression: 40-150kPa Absorption de l'humidité: <1%
Mettre en évidence:

non-combustible pipe fire protection

,

A1 fireproof mineral wool

,

thermal insulation for pipes

Description de produit

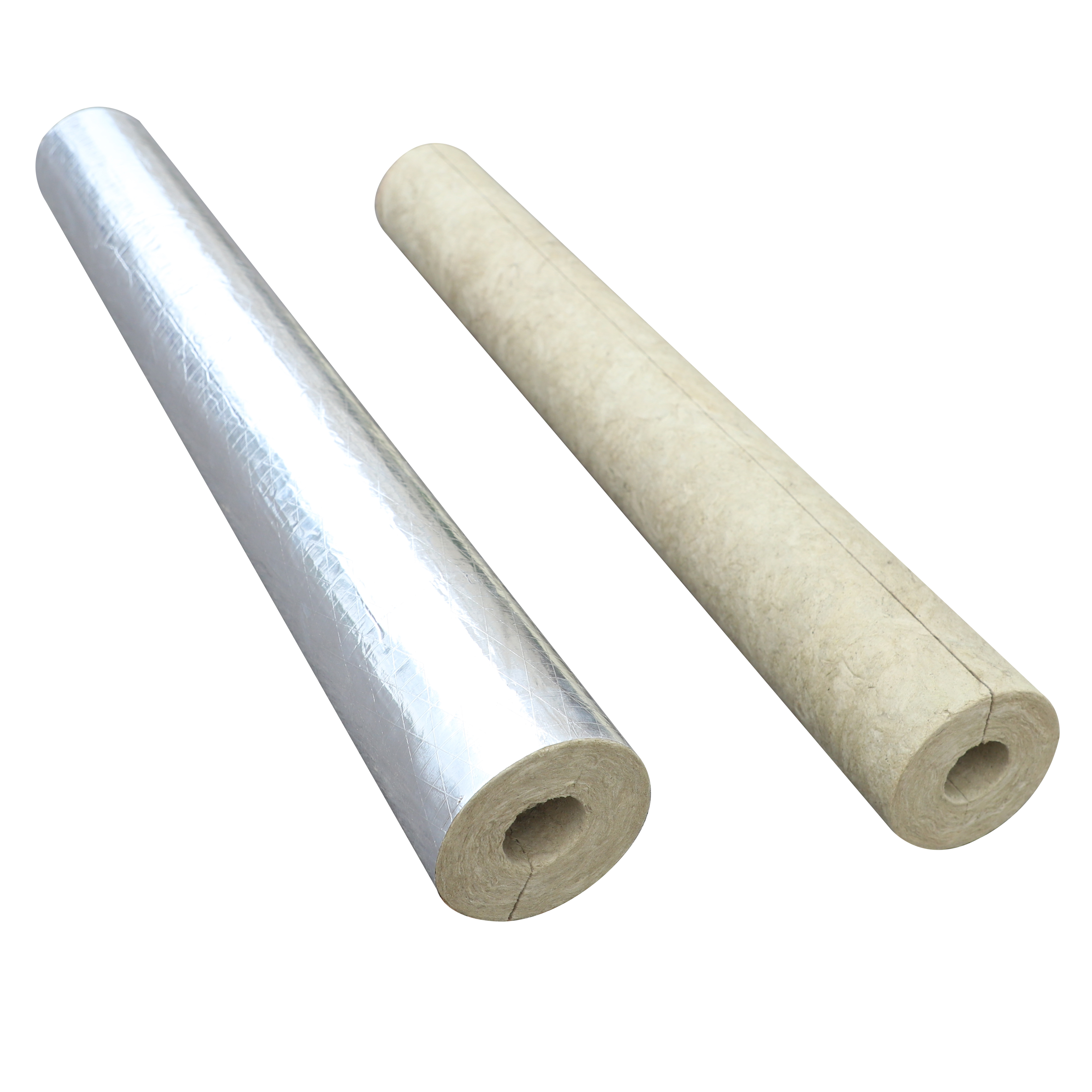

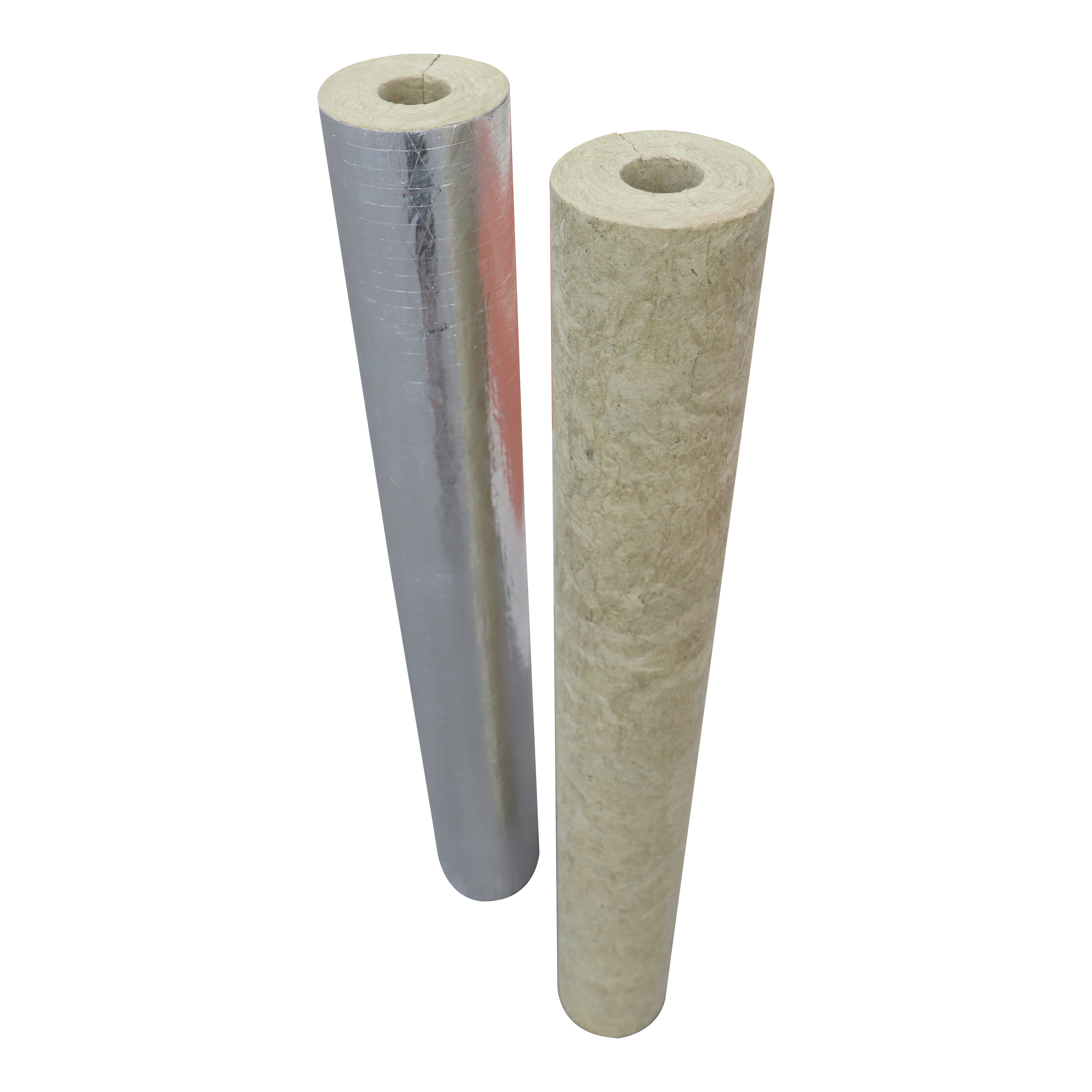

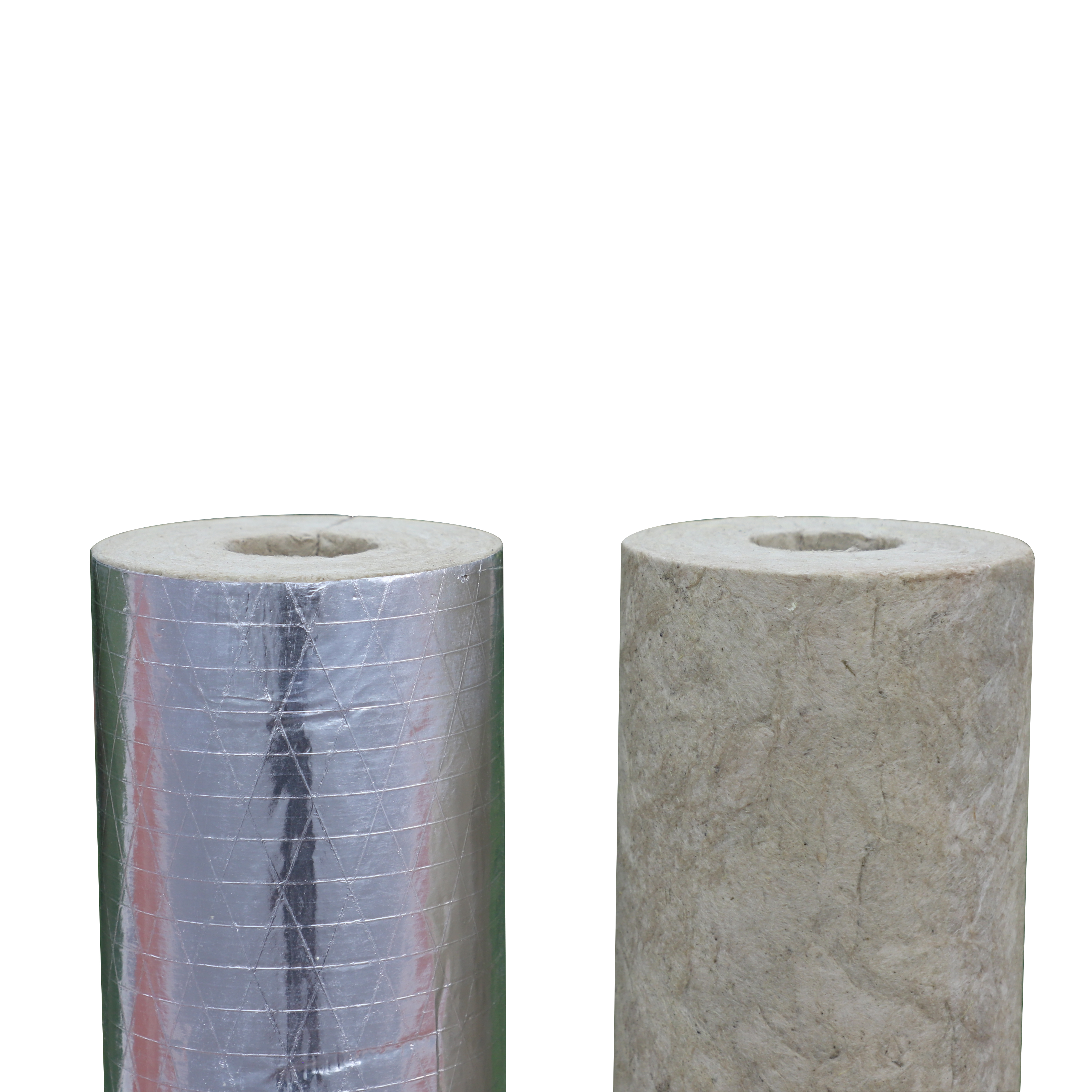

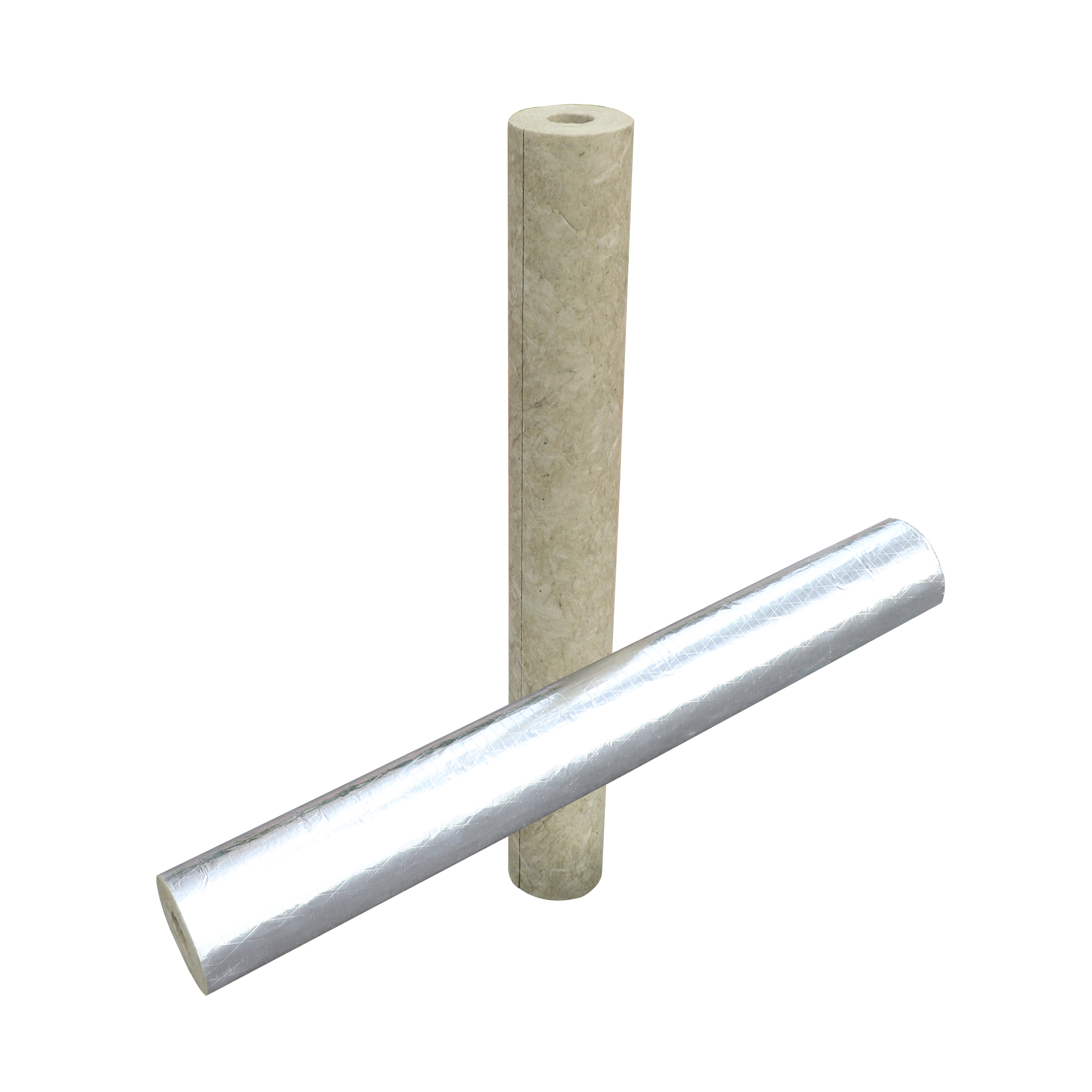

Rock Wool Pipe
Product introduction of the rock wool pipe

In any facility, pipe systems can become conduits for fire. FANRYN Rock Wool Pipe is specifically designed to be a passive fire protection solution, engineered to contain fires and protect critical infrastructure. As a product made from stone, it is inherently non-combustible.

It achieves the highest fire performance classification—Class A1 according to GB/T 8624-2006. This means it will not contribute to the fire load; it will not burn, produce flaming droplets, or release significant amounts of heat or smoke. By insulating pipes with FANRYN Rock Wool, you are installing a vital barrier that helps to:

  • Compartmentalize Fire: Prevent the spread of flames through pipe penetrations in walls and floors.

  • Protect Structural Elements: Shield supporting steelwork and adjacent materials from intense heat.

  • Maintain System Integrity: Help ensure essential services and sprinkler systems remain operational longer during a fire event.

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 0

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 1

Product parameter of the rock wool pipe

Properties

Specifications

Standards

Density Tolerance

±15%

GB/T 19686-2005

Fire Performance

Non-Combustible

GB/T 5464-1999



Reaction to fire Class A1

GB/T 8624-2006

Thermal Conductivity

 (W/mK, at70±5℃)

≤0.044

GB/T 10295

Fiber Diameter

7(+/-1)um

GB/T 5480. 4

Shot Content

(shot size＞0.25mm)

≤12%



Eccentricity of Pipe shell

≤5mm


Product size of the rock wool pipe

DIA

Thickness (mm)

inch

mm

25

30

40

50

60

70

80

90

100

120

150

1/2’’

22

●

●



●















3/4’’

27

●

●

●

●

●

●

●









1’’

34

●

●

●

●

●

●

●









1-1/4’’

43

●

●

●

●

●

●

●

●

●





1-1/2’’

48

●

●

●

●

●

●

●

●

●





2’’

60

●

●

●

●

●

●

●

●

●





2-1/2’’

76

●

●

●

●

●

●

●

●

●





3’’

89

●

●

●

●

●

●

●

●

●





3-1/2’’

108

●

●

●

●

●

●

●

●

●





4’’

114

●

●

●

●

●

●

●

●

●

●



5’’

140



●

●

●

●

●

●

●

●

●

●

6’’

169



●

●

●

●

●

●

●

●

●

●

8’’

219





●

●

●

●

●

●

●

●

●

10’’

273





●

●

●

●

●

●

●

●

●

12’’

325





●

●

●

●

●

●

●

●

●

14’’

356







●

●

●

●

●

●

●

●

15’’

381







●

●

●

●

●

●

●

●

16’’

406







●

●

●

●

●

●

●

●

18’’

456







●

●

●

●

●

●

●

●

19’’

483











●

●

●

●

●

●

20’’

508











●

●

●

●

●

●

22’’

558













●

●

●

●

●

24’’

610













●

●

●

●

●
Product feature of the rock wool pipe

  • Class A1 Rating: The highest possible classification for non-combustibility.

  • Inherently Fire-Resistant: Made from stone, it cannot burn.

  • Passive Fire Protection: Works 24/7 without the need for activation or maintenance.

Product application of the rock wool pipe

Insulation and fireproof of huge projects like power plant, oil depot and petrochemical works.

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 2

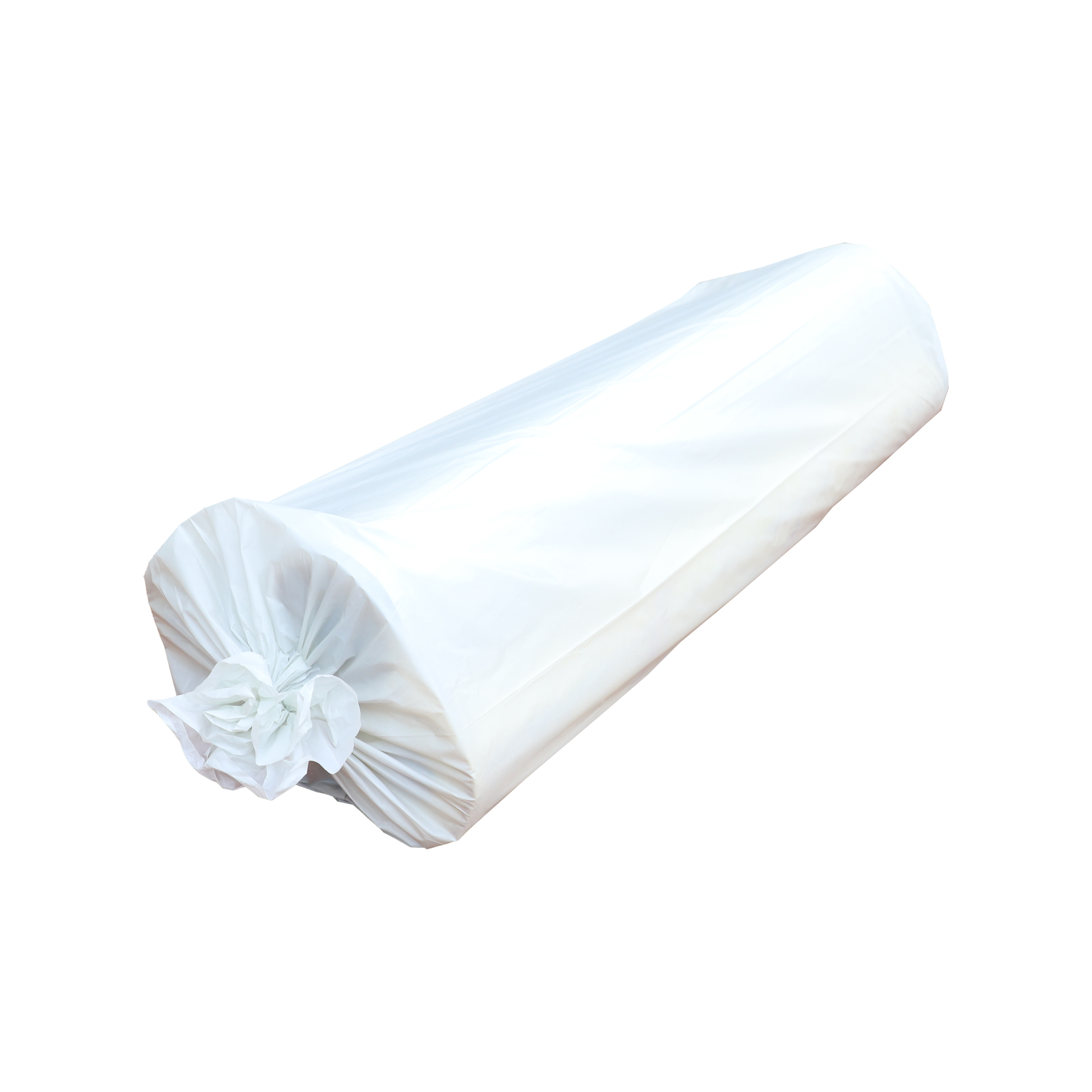

Production packing of the rock wool pipe

Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 3                     Your First Line of Defense: A1 Non-Combustible Fire Protection for Pipes 4

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.

Q4: What is your advantage on rock wool pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
