A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
Informations de base
Lieu d'origine: Chine
Nom de marque: FANEYN
Certification: CE
Quantité de commande min: un 40HQ
Détails d'emballage: Sac PE
Délai de livraison: 10 jours ouvrables
Conditions de paiement: T/T
meilleur prix Contactez
Détail Infomation
Application: Isolation thermique des bâtiments, équipements industriels Dimensions: Généralement 600 mm x 1 200 mm
Méthode d'installation: Fixation mécanique ou collage Couleur: jaune pour brunir
Résistance à la température: -180°C à 700°C Coefficient d'absorption acoustique: 0,85
Nom du produit: Laine minérale d'isolation thermique Épaisseur: 25mm à 150mm
Densité: 40-200 kg/m³ Impact environnemental: Recyclable, écologique
Absorption d'eau: <1% Résistance au feu: Incombustible, classe A1
Conductivité thermique: 0,035 W/m·K Matériel: Laine minérale
Résistance à la compression: ≥10kPa

Description de produit

Rock Wool Board (Stone Wool Insulation Board)
Product Overview:

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.

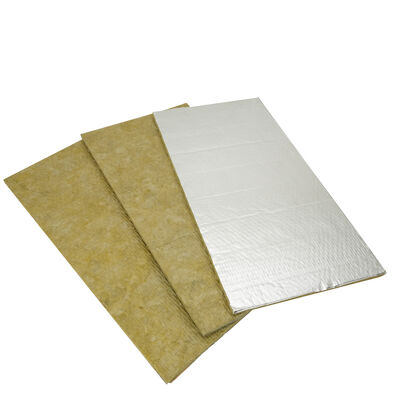

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation 0
Key Features & Benefits:
Feature Benefit
A1 Non-combustible Highest fire safety rating; melting point above 1,000°C; prevents flame spread
Low Thermal Conductivity ≤0.044 W/(m·K) at 70°C for excellent energy efficiency
High Sound Absorption Dense fiber structure effectively reduces mid-to-low frequency noise
Low Moisture Absorption ≤0.5% water content; resists mold, rot, and corrosion
Dimensionally Stable Maintains shape and performance over time
Easy to Install Can be cut on-site with standard tools; suitable for irregular spaces
Eco-friendly Made from natural stone; asbestos-free and non-toxic
Technical Specifications:
Parameter Specification
Density Range 24 – 96 kg/m³
Density Tolerance ±10%
Thickness Range 25 – 100 mm (customizable)
Length Range 600 – 2,400 mm (customizable)
Width Range 600 – 1,250 mm (customizable)
Thermal Conductivity ≤0.044 W/(m·K) at 70±5°C
Fiber Diameter 7 ± 1 μm
Shot Content (>0.25mm) ≤12%
Moisture Content ≤0.5%
Organic Matter Content ≤4%
Melting Point >1,000°C
Fire Rating A1 Non-combustible
Available Facings:

  1. Foil-Scrim-Kraft Facing

  2. Alum Glass Cloth Facing

  3. Fiberglass Tissue

Unfaced boards are also available.

Packaging:

  • Standard: Plastic bag packaging

  • Custom packaging options available upon request

Applications:

  • Building exterior wall insulation systems

  • Curtain wall fire barriers and cavity walls

  • Roof and ceiling insulation

  • HVAC duct insulation

  • Industrial pipe and equipment insulation

  • Core material for sandwich panels

  • Soundproofing in machine rooms, studios, and theaters

  • Marine and offshore insulation
