Bare Glasswool Board - High-Temp HVAC Acoustic Insulation Waterproof Reaction to Fire Class a

Informations de base
Lieu d'origine: Chine
Nom de marque: fanryn
Certification: ASTM-E84
Numéro de modèle: planche à lacets
Quantité de commande min: 1 * 40hq
Prix: 0.1-5$
Détails d'emballage: Sac en plastique
Délai de livraison: 7-10 jours
Conditions de paiement: T / t
Capacité d'approvisionnement: 10000 mètres carrés
Détail Infomation
Application: Isolation du bâtiment Résistance chimique: Haut
Impact environnemental: Faible Absorption de l'humidité: Moins de 1%
Durabilité: Longue durée Résistance à la compression: Haut
Résistance au feu: Classe A1 Méthode d'installation: Rouleaux ou bâtonnets
Absorption: Haut Conductivité thermique: 0,031-0.042 avec mk
Matériel: Laine de verre Densité: 24-96 kg / m3
Type d'isolation: Thermique
Mettre en évidence:

Bare Glasswool Board HVAC insulation

,

High-temp acoustic insulation board

,

Waterproof mineral wool Class A


Description de produit

Product Introduction Of The Bare Glass Wool Board Insulation

FANRYN centrifugal glass wool board is a rigid, hot-formed panel recognized for its uniform strength and stability. It offers outstanding thermal insulation performance in both high- and low-temperature settings. Widely employed in advanced construction and industrial sectors, it is an ideal material for partition walls, suspended ceilings, duct and equipment insulation, as well as acoustic control in machinery rooms. It also acts as an efficient moisture barrier when installed behind metal ceiling systems. High-density laminated variants are especially designed for use in air conditioning duct insulation.

 FSK_.jpgglass wool blanket (7).jpg



Product Parameter Of The Glass Wool Board Insulation

Technical Data

Item

Unit

Index

Standard

Density

kg/m3

24-96

GB/T 5480.3

Average fiber dia

μm

5.5

GB/T 5480.4-1985

Water content

%

≤ 1

GB/T 3007-1982

Grade of combustibility



Non-combustible Grade A

GB 8624-1997

Preshrinking temp

≥250

GB/T 11835-1998

Thermal conductibility

w/m·k

0.031-0.042

GB/T 10294-1988

Hydrophobicity

%

≥ 98.2

GB/T 10299-1988

Moisture rate

%

≤ 5

GB/T 16401-1986

Sound absorption coefficient



1.03 product reverberation method 24kg/m3    2000HZ

GBJ 47-83

Slag inclusion content

%

≤ 0.3




Product Size OThe Glass Wool Board Insulation

Density(kg/m3)

Thickness(m)

Length (m)

Width (m)

Pcs/packing

24-96

0.025-0.1

0.6-1.25

0.6

5-18

24-96

0.025-0.1

0.6-2.4

1.1-1.25

5-18


Product Feature And Application Of The Glass Wool Board Insulation

  1. Wall Insulation
    Applied to both exterior and interior walls, it effectively maintains indoor temperature, minimizes energy loss, and enhances a building’s adaptability to varying climate conditions.

  2. Steel Structure Insulation
    Ideal for industrial plants, warehouses, and large-span steel structures, it delivers thermal insulation alongside energy efficiency and fire resistance.

  3. Indoor Partition Walls
    Functions as a lightweight infill material in interior partitions, offering both thermal and acoustic insulation while optimizing space usage and increasing privacy.

  4. Railway Vehicle Insulation
    Provides thermal and noise control in train compartments, contributing to passenger comfort and complying with industry standards for transportation materials.

  5. Sound Absorption & Noise Isolation
    Reduces noise transmission across commercial, industrial, and residential environments through sound-absorbing and blocking applications—well-suited for use in theaters, recording studios, and mechanical equipment rooms.

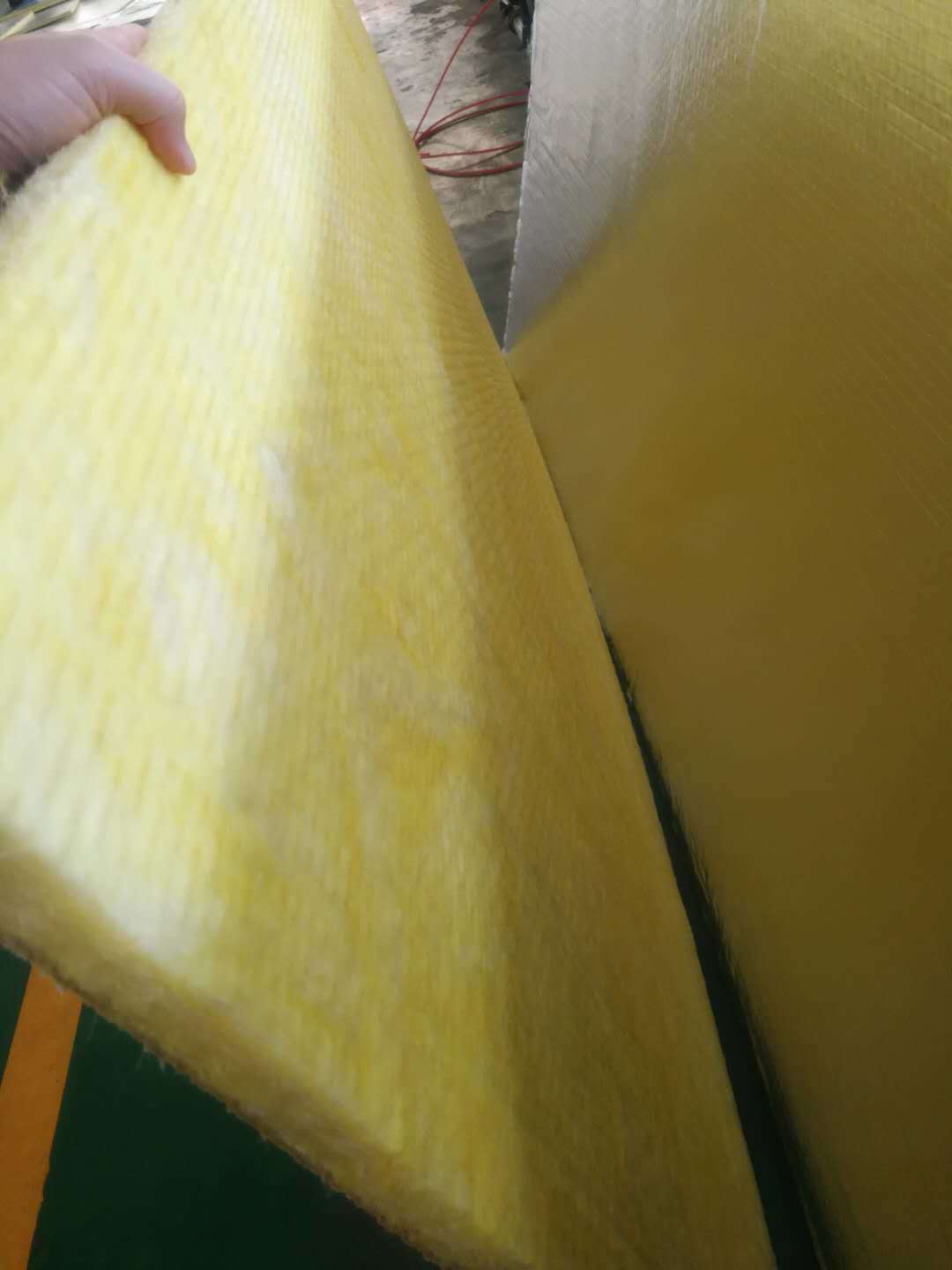

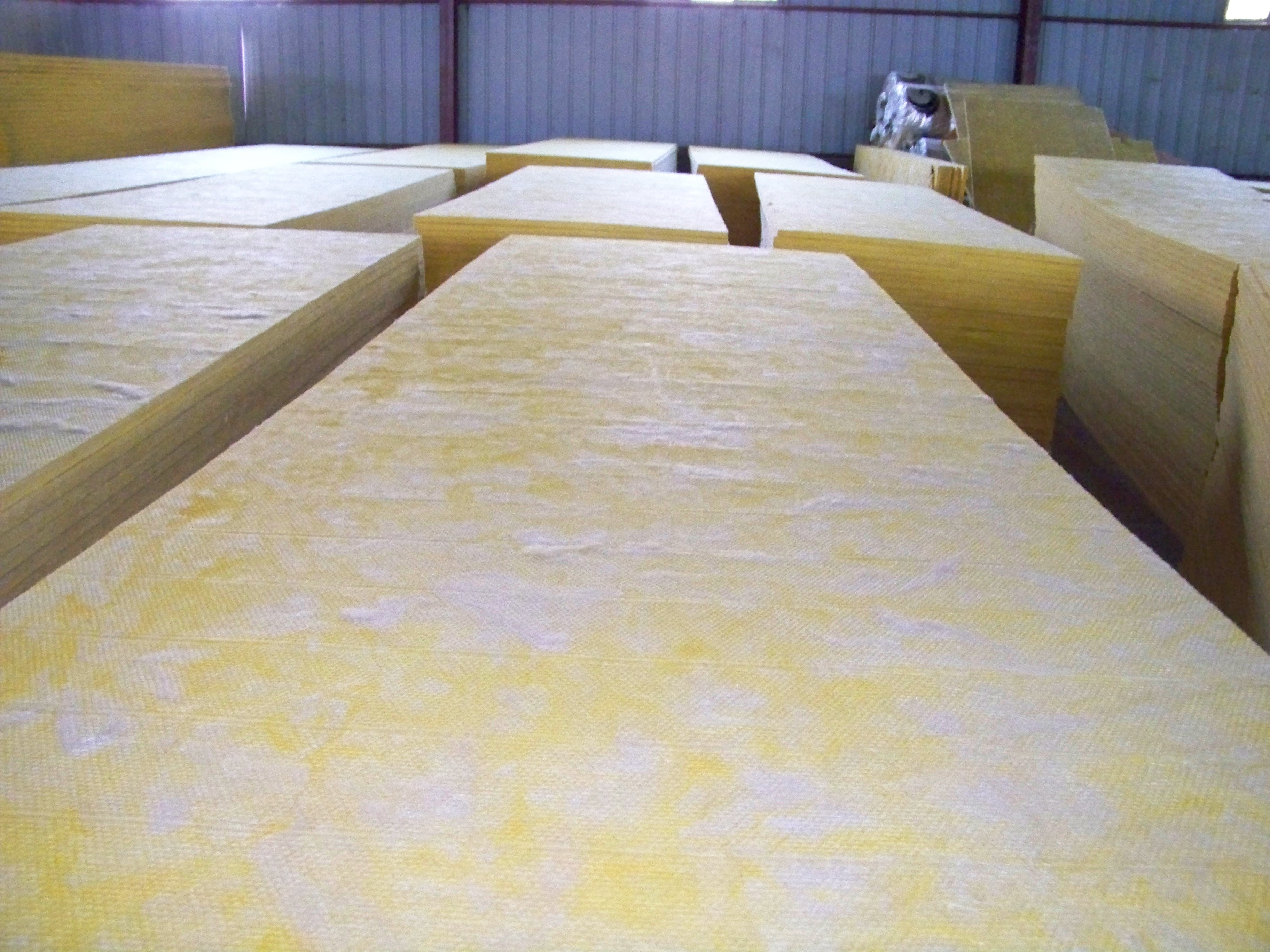

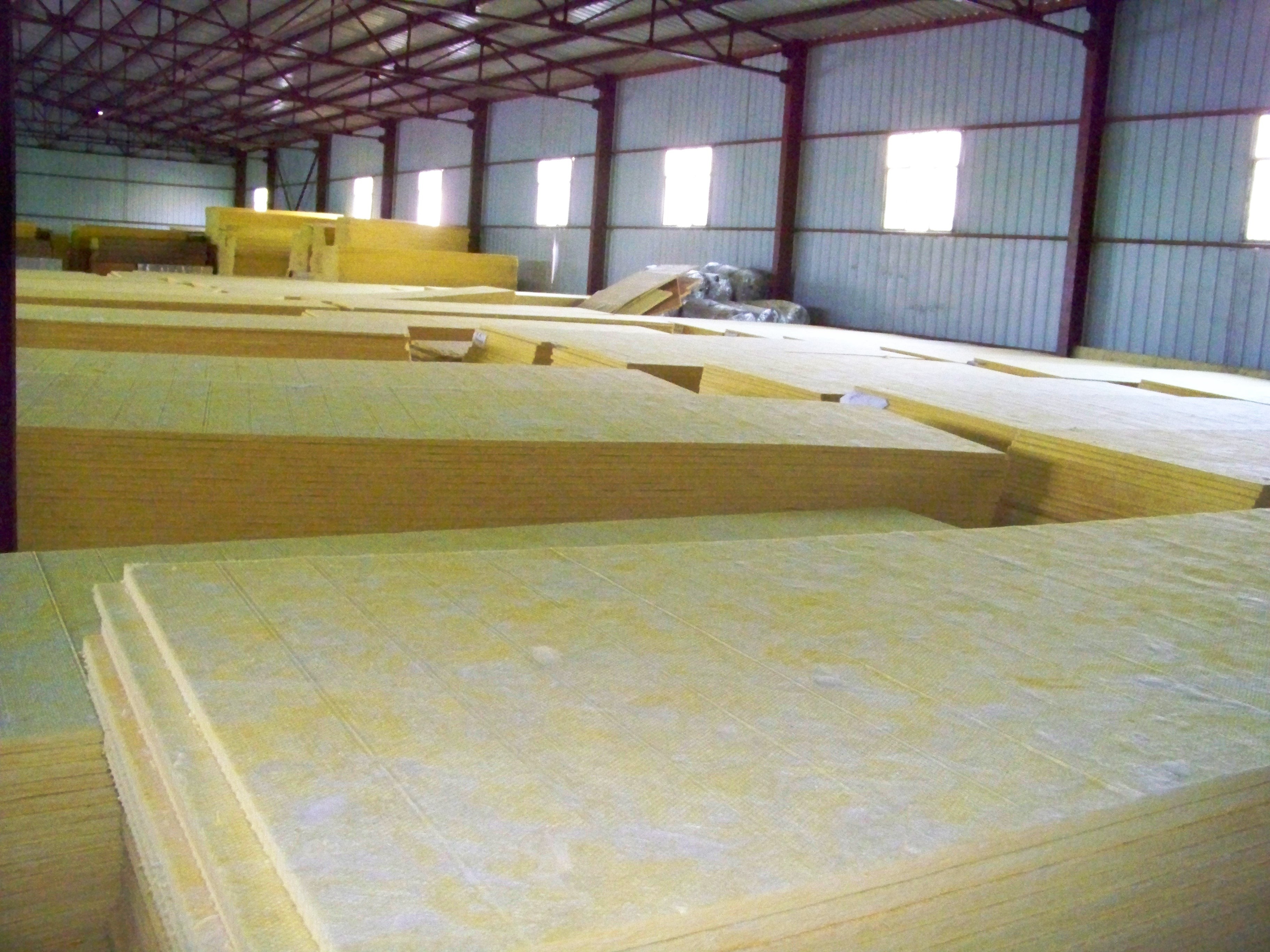

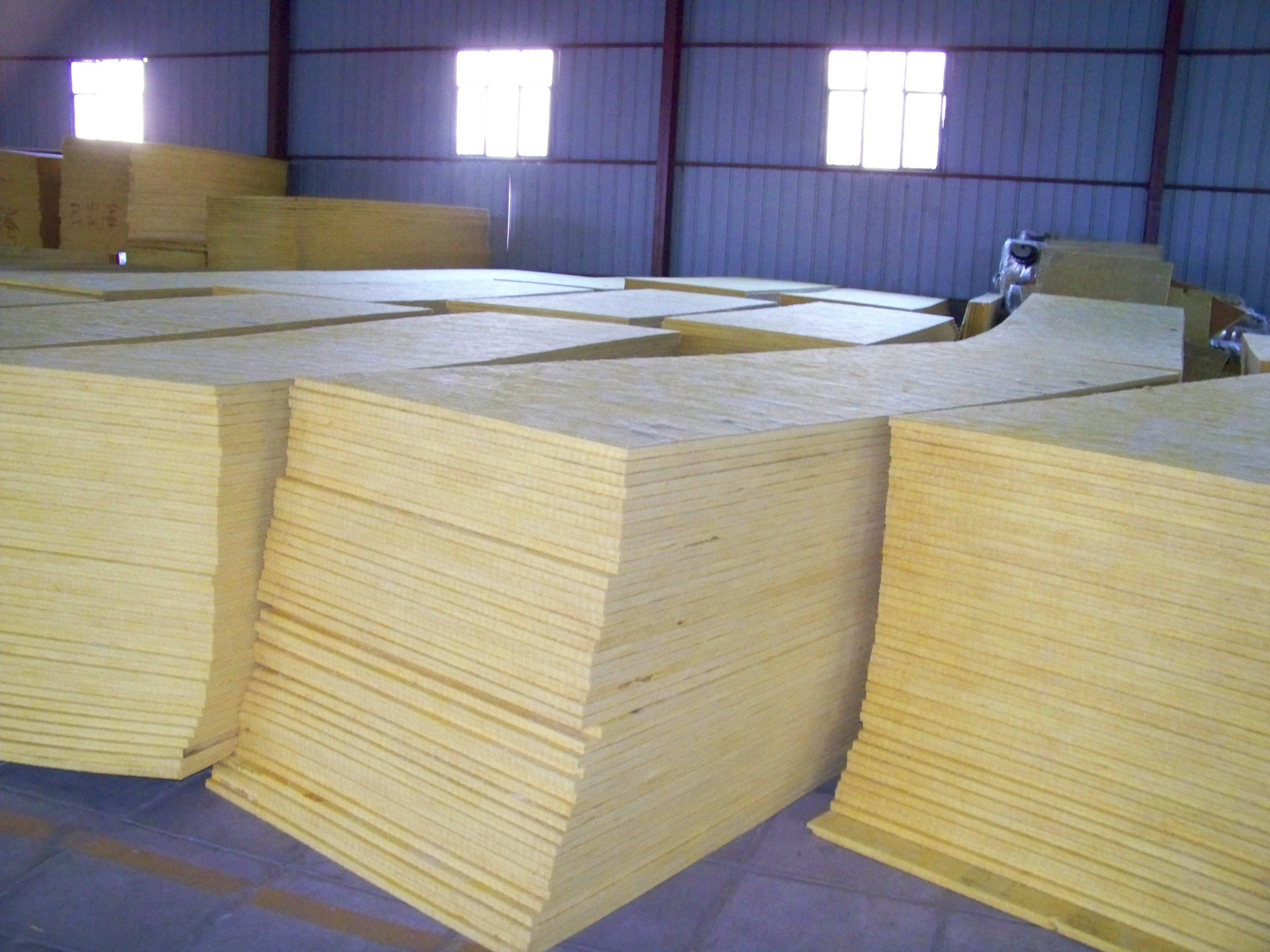

Production Details Of The Glass Wool Board Insulation

Bare Glasswool Board - High-Temp HVAC Acoustic Insulation Waterproof Reaction to Fire Class a 3100_1347.JPG




Product Packing Of The Glass Wool Board Insulation

The normal packing is plastic bag

OEM is acceptable



Production Facing OThe Glass Wool Board Insulation

1.Foil-Scrim-Kraft Facing

2.Alum Glass Cloth Facing

3.Fiberglass Tissue

Bare Glasswool Board - High-Temp HVAC Acoustic Insulation Waterproof Reaction to Fire Class a 6Bare Glasswool Board - High-Temp HVAC Acoustic Insulation Waterproof Reaction to Fire Class a 6_20250818174830_21.png







FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).



Q3: what is your lead time for one 40HC container order?

A3: Usual 7-10 work days after placing order



Q4: What is your advantage on glass wool board?

A4: Special size can be made according customer’s requirement.



Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.



Our service

-One year warranty for all products

-Necessary technical support

-Delivery quality products with excellent service on time

-Supply one stop solution on insulation and ventilation products

-Supply high level QC service
