HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems

HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems
HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems
Informations de base
Lieu d'origine: Chine
Nom de marque: FANRYN
Détails d'emballage: Sac en plastique
Délai de livraison: 10 jours ouvrables
Conditions de paiement: T/T
meilleur prix Contactez
Détail Infomation
Matériel: Laine de verre Température de service: 300 °C, 350 °C, 400 °C
Incendie: Classe A Fonction: Isolation thermique
Environnemental: Respectueux de l'environnement Grade de combustibilité: GradeA non-combustible
Résistance à l'humidité: Non absorbant Méthode d'installation: Facile à couper et à installer
Absorption: 0,8-1,05 Résistance à la compression: UN
Garantie: Plus de 5 ans Conductivité thermique: 0.038W/mK
Champ d'application: Isolation de climatisation Forme: Carré
Taper: Résistant au froid et à la chaleur Densité: 10-48kg/m3,10-100kg/mètre cube,24-90kg/m3,50-200 kg/m3,10-80kg/m3 panneau de laine de verre
Couleur: Jaune, jaune/rose, bleu ou personnalisé, argent, blanc bleu mer gris Épaisseur: 25mm-200mm,50mm 75mm 100mm,30mm,25-150mm,25mm/30mm/50mm/75mm/100mm
Application: Construction, chauffage par le sol, bâtiment, isolation CVC, mur insonorisé Largeur: 600-1200mm,1,2m,1m/1,2m/1,22m,0,6m,600mm
Conductivité thermique: 0,034-0,06 W/mK, 0,032-0,06 W/MK, 0,040 W/mK, ≤ 0,039
Mettre en évidence:

HVAC duct board glass wool

,

laminated glass wool duct board

,

air conditioning duct board insulation

Description de produit

Glass Wool Board
Product introduction of the glass wool board

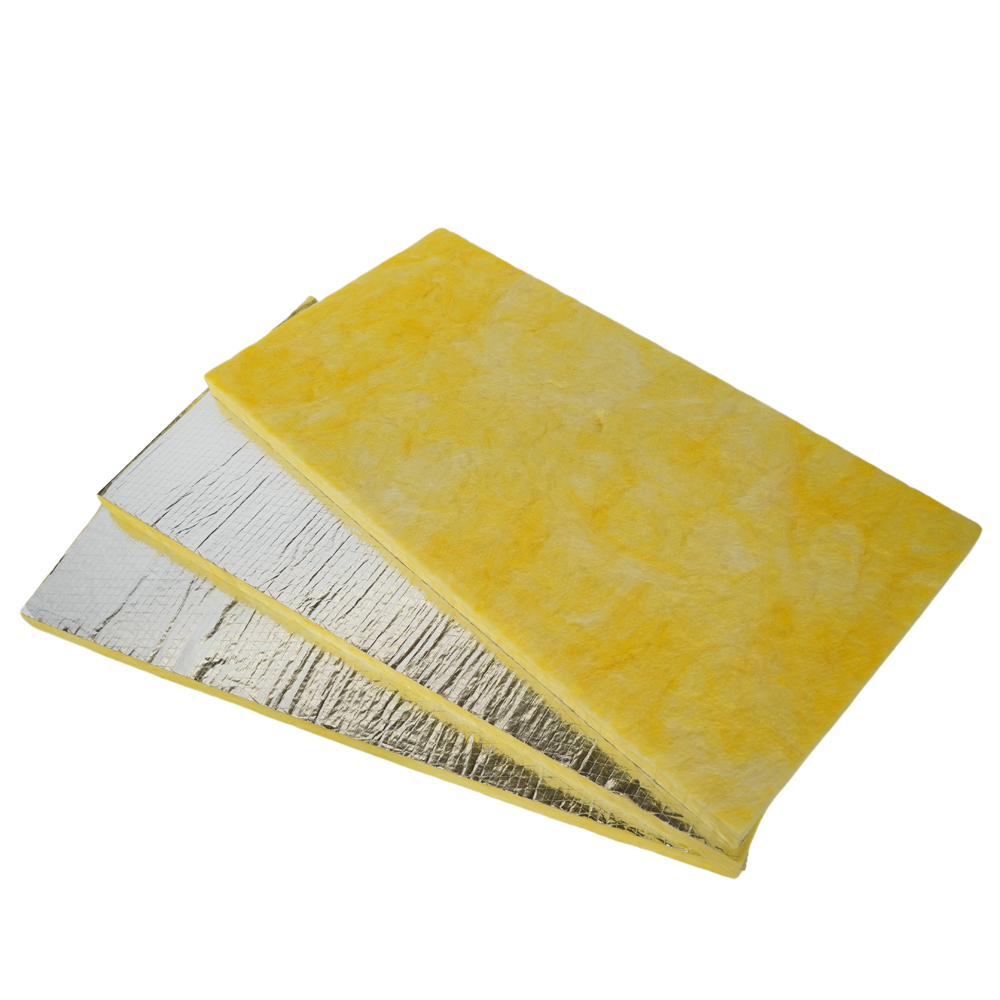

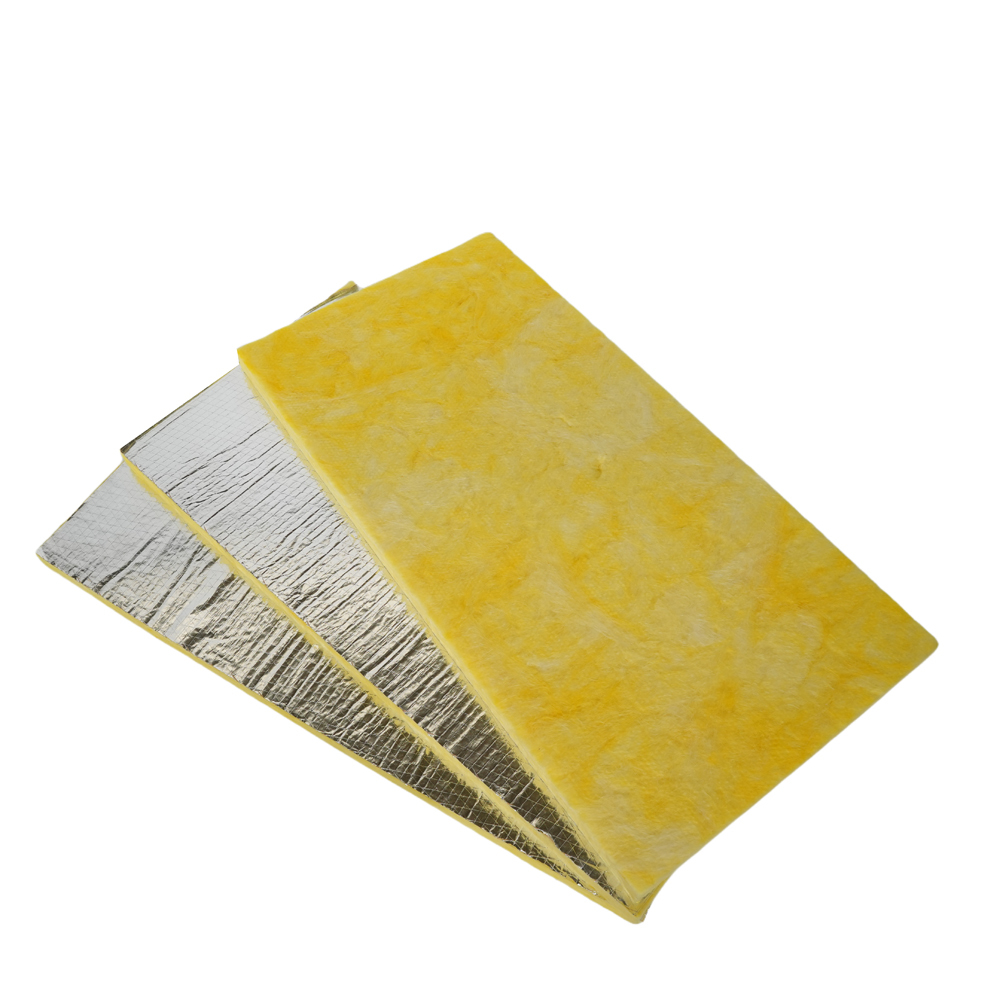

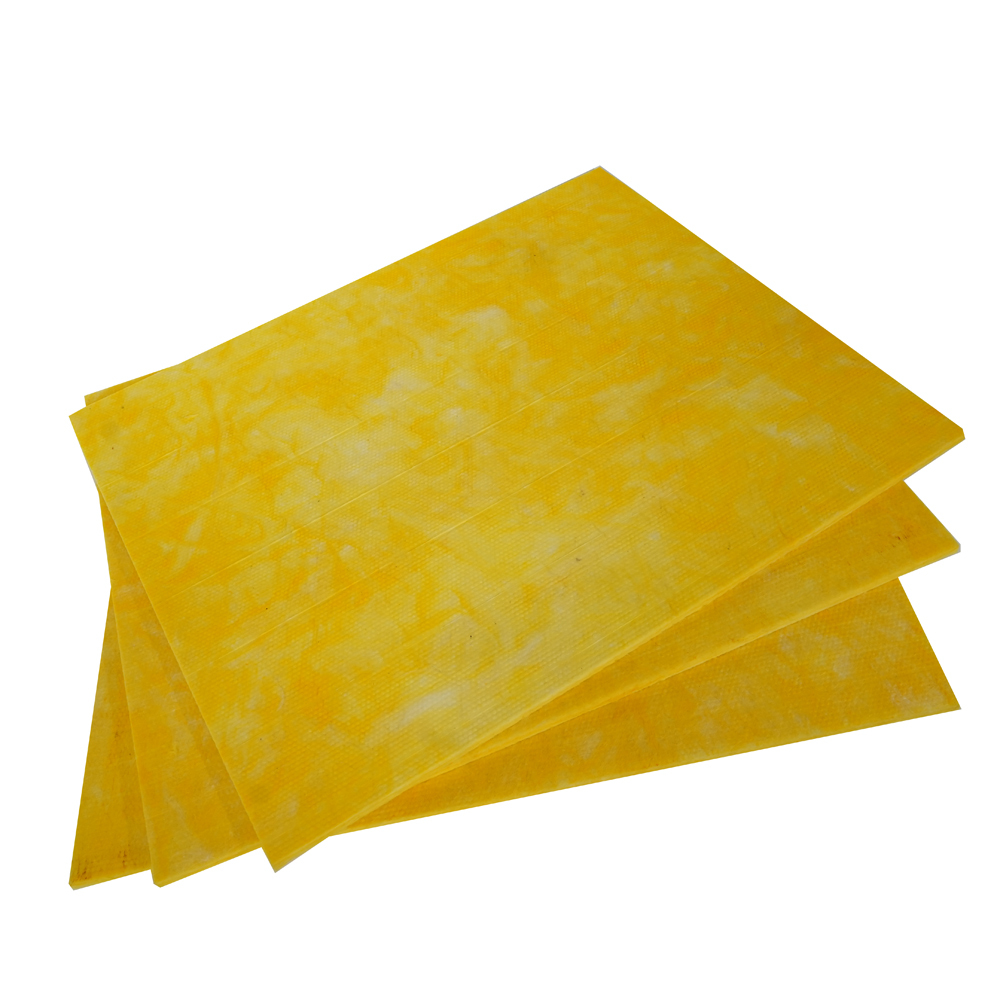

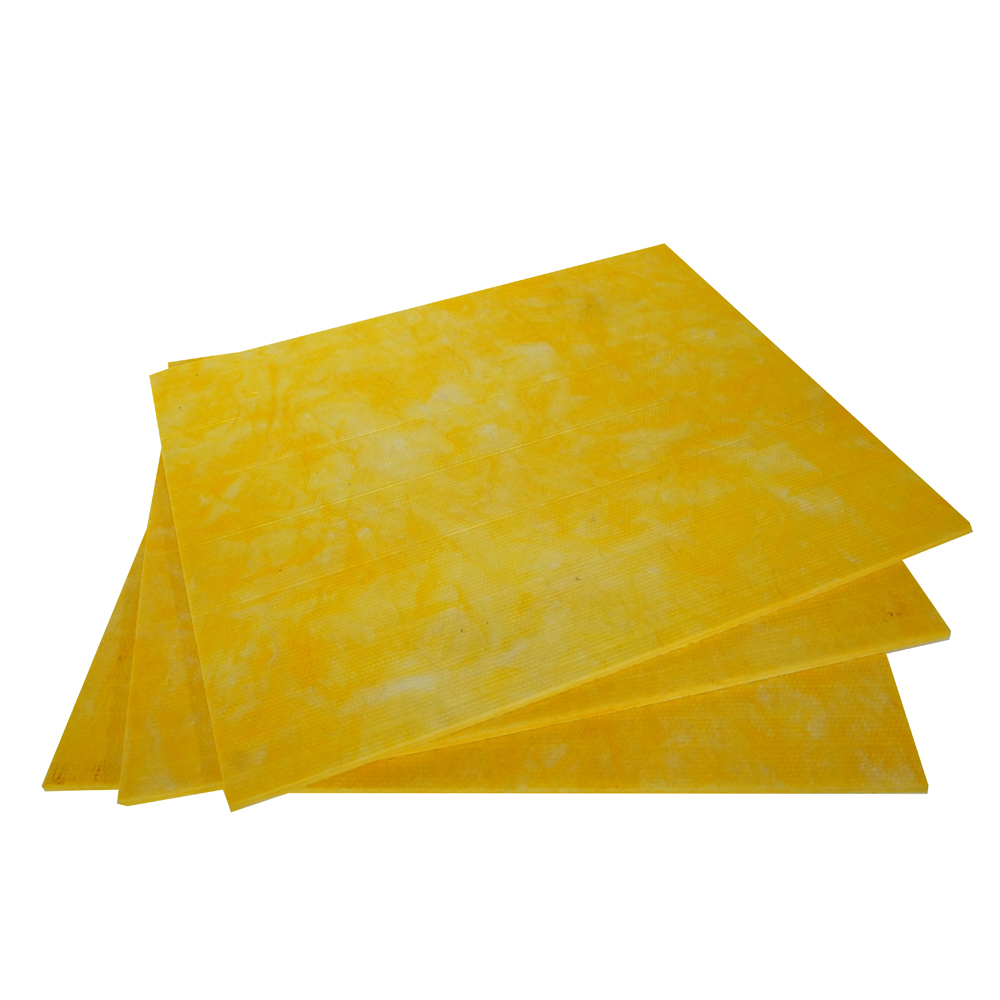

Engineered specifically for demanding HVAC applications, our FANRYN Glass Wool Duct Board is the ideal choice for fabricating and insulating air conditioning and ventilation ducts. With a higher density range (up to 96 kg/m³) and the option for laminated facings, it provides superior rigidity, acoustic lining, and thermal efficiency for commercial and industrial systems.

HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems 0 HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems 1
Product parameter of the glass wool board
Item Unit Index Standard
Bulk density kg/m3 24-96 GB/T 5480.3-1985
Average fiber dia. µm 5.5 GB/T 5480.4-1985
Water content % ≤1 GB/T 3007-1982
Grade of combustibility Non-combustible Grade A GB 8624-1997
Reshrinking temp ℃ ≥250 GB/T 11835-1998
Thermal conductibility w/m.k 0.031-0.042 GB/T 10294-1988
Hydrophobicity % ≥98.2 GB/T 10299-1988
Moisture rate % ≤5 GB/T 16401-1986
Sound absorption coefficient 1.03 product reverberation method 24kg/m32000HZ GBJ 47-83
Slag inclusion content % ≤0.3
Product size of the glass wool board
Density(kg/m3) Thickness(m) Length (m) Width (m) Pcs/packing
24-96 0.025-0.1 0.6-1.25 0.6 5-18
24-96 0.025-0.1 0.6-2.4 1.1-1.25 5-18
Product feature and application of the glass wool board

  • Duct Board Specific: Designed for fabricating rectangular and oval ductwork, offering both thermal insulation and noise reduction from the inside out.

  • High-Density Performance: Provides structural integrity and resistance to airflow erosion within ducts, ensuring long-term performance.

  • Factory-Laminated Facings: Available with Foil-Scrim-Kraft (FSK) for a built-in vapor barrier, reducing on-site labor time and costs.

  • Non-Combustible Safety: Grade A fire rating ensures compliance with building safety codes for mechanical systems.

  • Easy Fabrication: Can be easily scored and cut to create precise duct sections and fittings.

  • HVAC Air Handling Unit Insulation

  • Fabrication of Double-Wall Ducts

  • Acoustic Lining for Sheet Metal Ducts

  • Plenums and Mechanical Room Insulation

Production packing of the glass wool board

The normal packing is plastic bag

OEM is acceptable

HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems 2

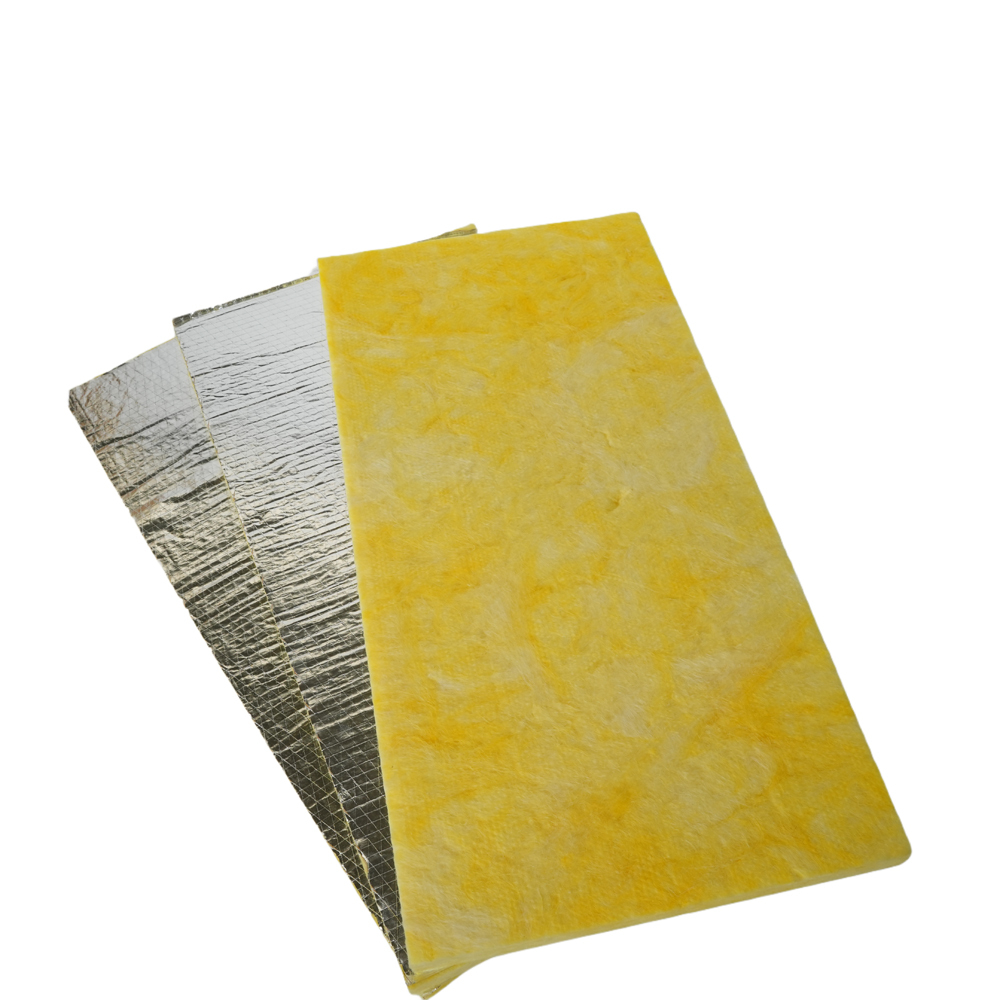

Production Facing of the glass wool board
  • Foil-Scrim-Kraft Facing
  • Alum Glass Cloth Facing
  • Fiberglass Tissue
HVAC Duct Board | High-Density Laminated Glass Wool for Air Conditioning Systems 3
FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on glass wool board?

A4: Special size can be made according customer’s requirement.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
