Lieu d'origine: | Chine |
---|---|
Nom de marque: | fanryn |
Certification: | astm e84 |
Numéro de modèle: | planche à lacets |
Quantité de commande min: | 1 * 40hq |
Prix: | 0.1-5$ |
Détails d'emballage: | Sac en plastique |
Délai de livraison: | 7-10 jours |
Conditions de paiement: | T / t |
Capacité d'approvisionnement: | 10000 mètres carrés |
Matériel: | Laine minérale | Application: | Toit, mur, sol |
---|---|---|---|
Épaisseur: | 25-100 mm | Dimension: | Taille standard de 1200x600 mm |
Absorption d'eau: | ≤1% | Densité: | 24-96 kg / m3 |
Résistance au feu: | Classe A | Résistance chimique: | Excellent |
Couleur: | Jaune | Conductivité thermique: | 0,031-0.042 avec mk |
Environnemental: | Oui | Taper: | Isolation thermique |
Mettre en évidence: | A1 HVAC insulation board,glasswool insulation for high-temperature,moisture-resistant soundproof insulation board |
Product Introduction Of The Bare Glass Wool Board Insulation
FANRYN Centrifugal Glass Wool Board is a rigid, hot-formed insulation panel renowned for its uniform strength and exceptional dimensional stability. Designed to deliver superior thermal performance across extreme temperature ranges, it is widely applicable in both high- and low-temperature environments. A preferred material in high-specification architectural and industrial projects, it is ideally suited for partition walls, suspended ceilings, as well as duct and equipment insulation. It also provides effective noise control in mechanical spaces and performs as a reliable moisture barrier when installed behind metal ceiling systems. Additionally, high-density laminated variants are optimized for use in HVAC duct insulation.
Product Parameter Of The Glass Wool Board Insulation
Technical Data |
|||
Item |
Unit |
Index |
Standard |
Density |
kg/m3 |
24-96 |
GB/T 5480.3 |
Average fiber dia |
μm |
5.5 |
GB/T 5480.4-1985 |
Water content |
% |
≤ 1 |
GB/T 3007-1982 |
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
Preshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
Thermal conductibility |
w/m·k |
0.031-0.042 |
GB/T 10294-1988 |
Hydrophobicity |
% |
≥ 98.2 |
GB/T 10299-1988 |
Moisture rate |
% |
≤ 5 |
GB/T 16401-1986 |
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
Slag inclusion content |
% |
≤ 0.3 |
Product Size Of The Glass Wool Board Insulation
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product Feature And Application Of The Glass Wool Board Insulation
Wall Insulation
Ideal for both exterior and interior walls, this solution ensures consistent indoor temperature regulation, greatly lowers energy usage, and strengthens a building’s resilience to varying climate conditions.
Steel Structure Insulation
Engineered for use in industrial plants, warehouses, and large-span steel constructions, it delivers effective thermal insulation, improves energy efficiency, and supports fire safety compliance.
Indoor Partition Walls
Acts as a lightweight partition core material that offers dual thermal and acoustic insulation, contributing to space optimization and increased privacy within interiors.
Railway Vehicle Insulation
Provides combined thermal and noise control in rail coaches, ensuring passenger comfort and adherence to strict industry standards for transportation materials.
Sound Absorption & Noise Isolation
Reduces noise transmission across commercial, industrial, and residential spaces using advanced absorption and blocking methods—highly suitable for performance venues, studios, and equipment rooms.
Production Details Of The Glass Wool Board Insulation

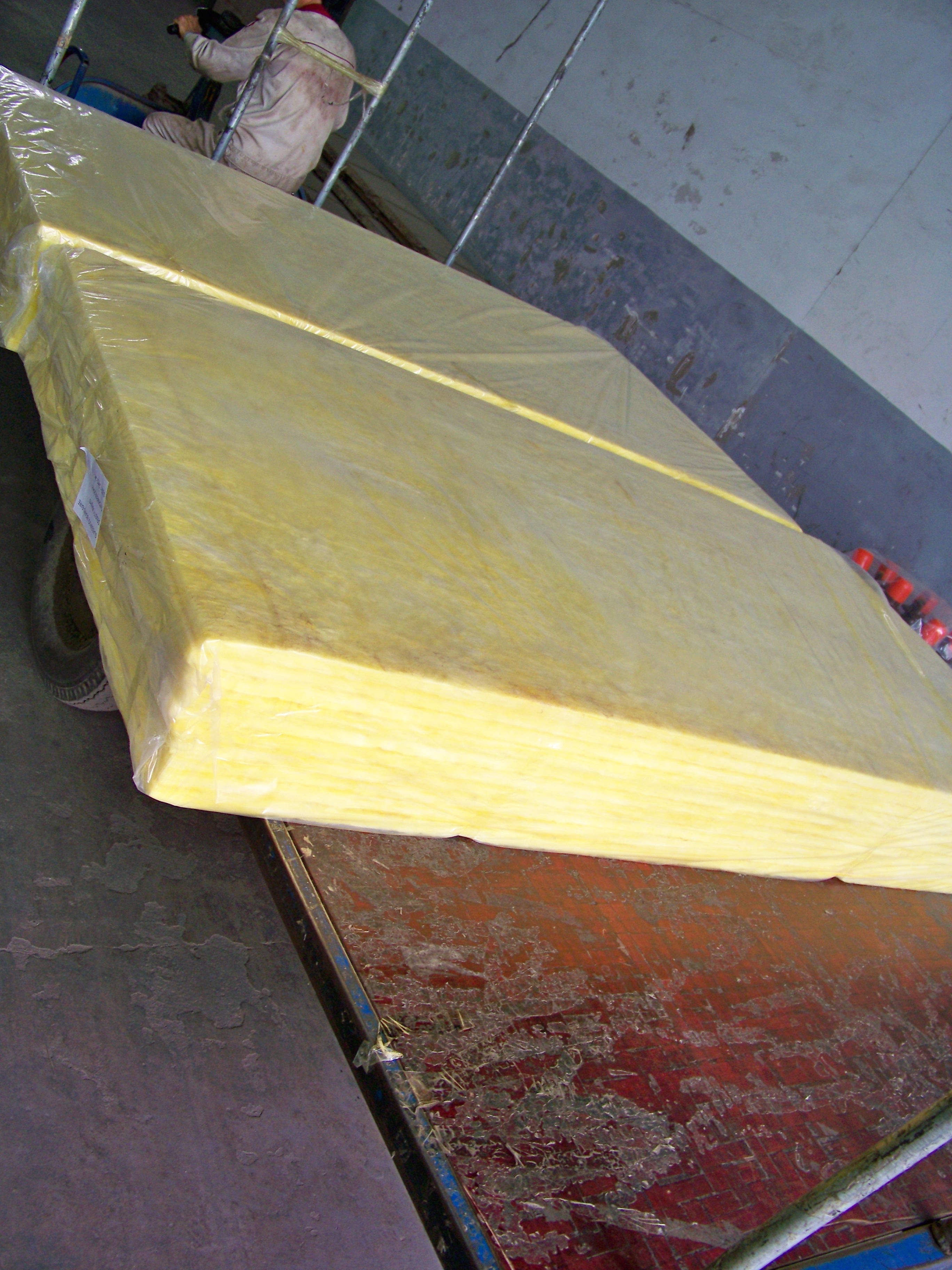

Product Packing Of The Glass Wool Board Insulation
The normal packing is plastic bag
OEM is acceptable

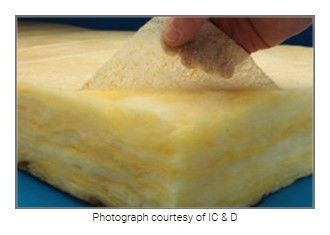

Production Facing Of The Glass Wool Board Insulation
1.Foil-Scrim-Kraft Facing
2.Alum Glass Cloth Facing
3.Fiberglass Tissue
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
