Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention

Informations de base

Lieu d'origine:	Chine
Nom de marque:	FANRYN

Détails d'emballage:	Sac en plastique
Délai de livraison:	15 jours de travail
Conditions de paiement:	T / t, l / c

meilleur prix Contactez

Détail Infomation

Résistance à l'humidité:	Répulsif	Installation facile:	Léger et souple
Durabilité:	Longue durée	Absorption:	Jusqu'à 1,0 NRC
Rentable:	Abordable	Incendie:	Classe A
Incombustible:	Ne brûle pas et ne contribue pas à la propagation du feu	Environnemental:	Fabriqué à partir de matériaux naturels
Résistance chimique:	Non corrosif	Type d'isolation:	Isolation thermique
Application:	Isolation du bâtiment	Densité:	10 à 100 kg/m3
Matériel:	Laine minérale	Conductivité thermique:	0,035-0.045 avec mk
Mettre en évidence:	glass wool pipe insulation , FSK faced pipe insulation , condensation prevention pipe insulation

Description de produit

Product introduction of the glass wool pipe

Prevent surface condensation and energy loss in low-temperature piping systems with our glass wool pipe insulation. Suitable for chilled water supply, refrigeration lines, and cooling pipelines, these sections maintain consistent temperature and prevent moisture buildup. The product’s adaptability to various pipe diameters (18–529 mm) makes it a versatile choice for both industrial and civil applications.

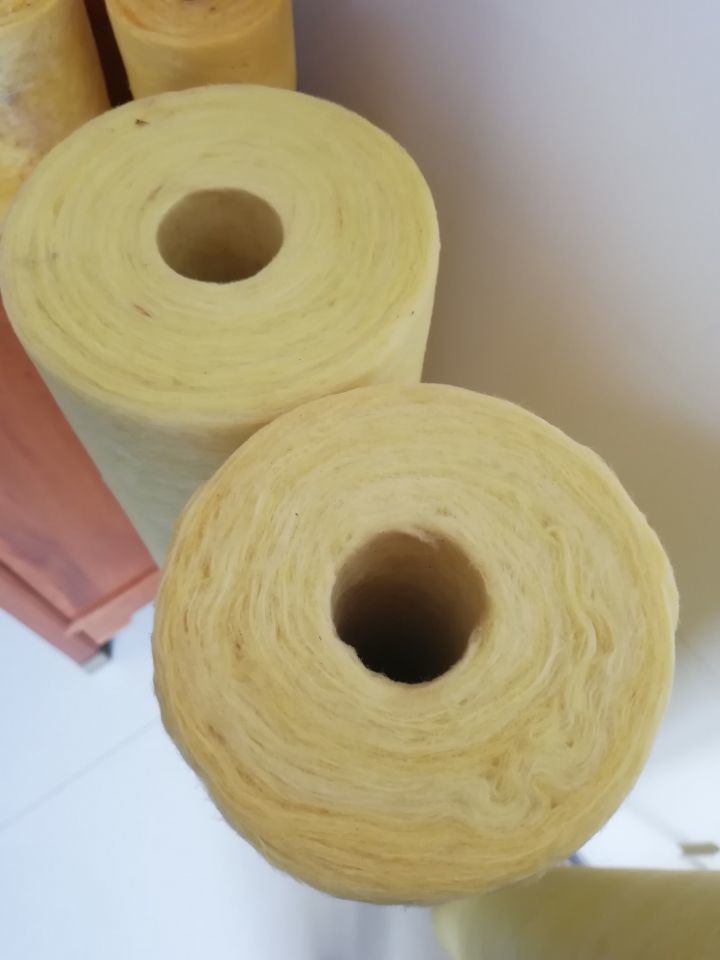

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 0

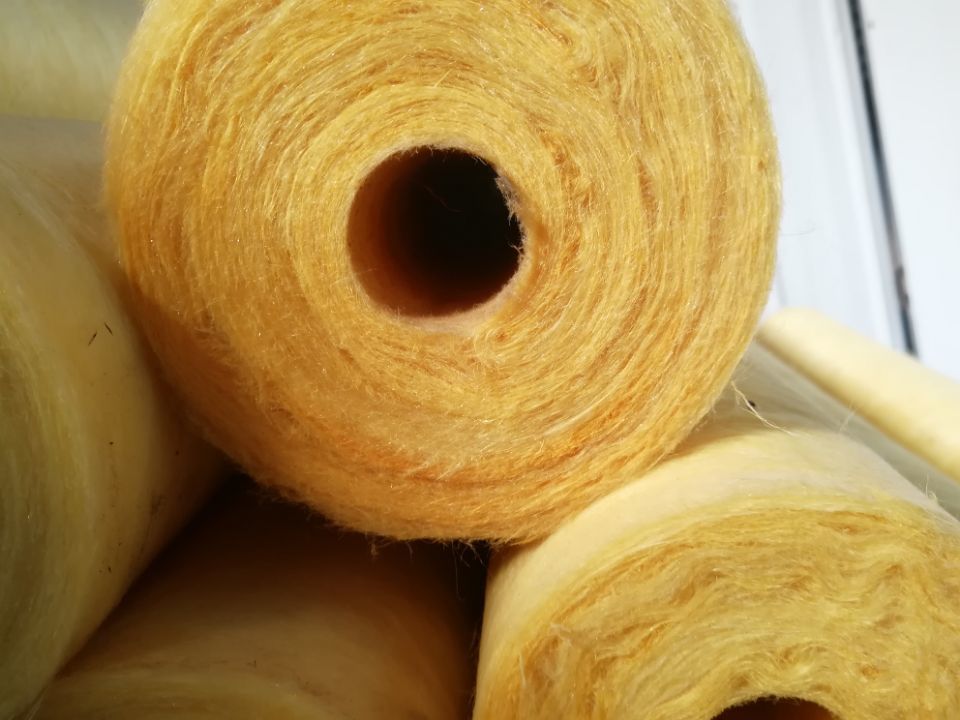

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 1

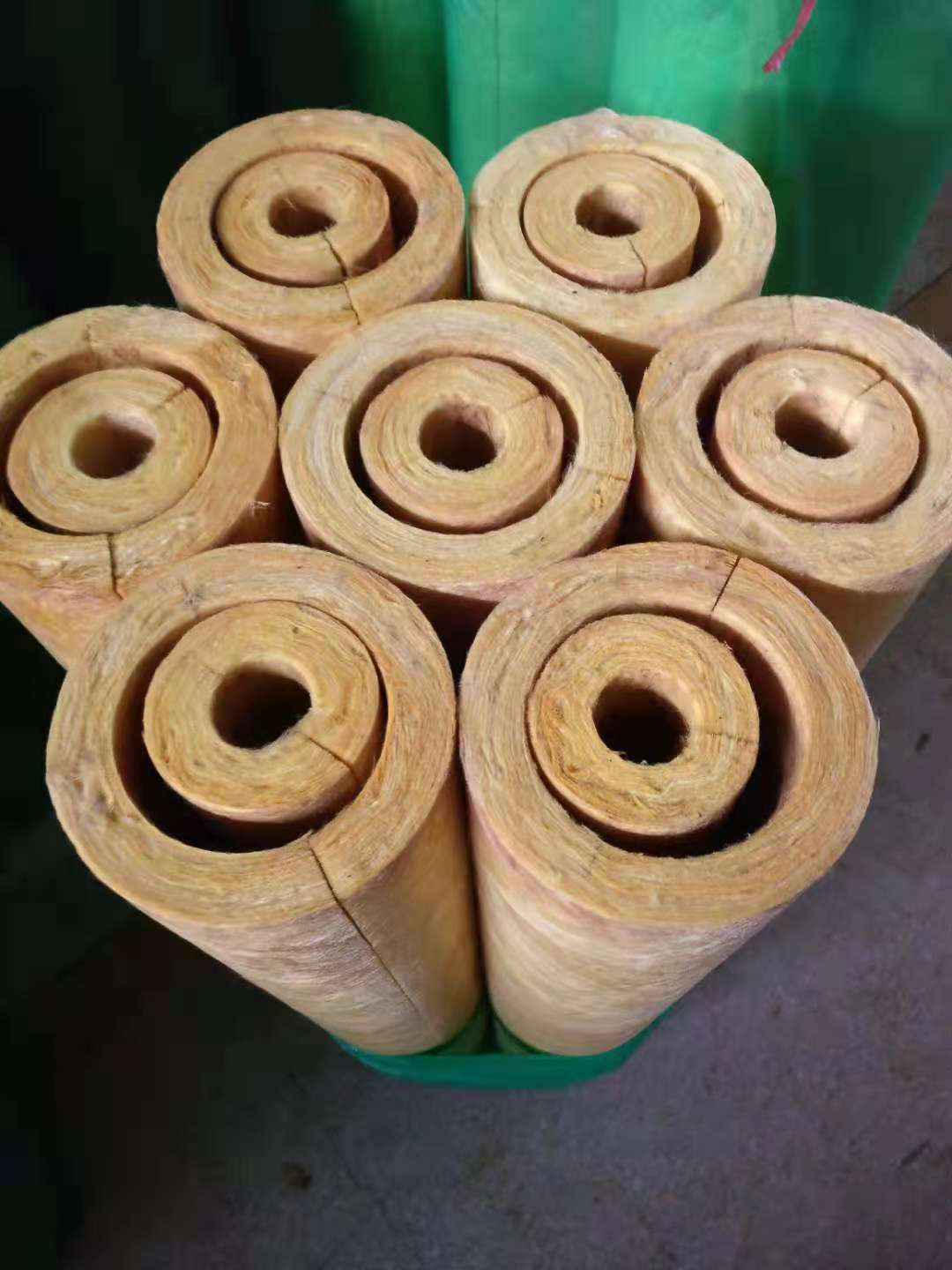

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 2

Product parameter of the glass wool Pipe

Recommend Thickness List(mm)

Pipeline System Type	The Thickness of glasswood pipe shell applied in different pipeline(mm)
Pipeline System Type	Liquid Temperature Range℃	Diameter of Branches Under 50mm	Under 25mm	32-50	64-100	125-150	Above 200mm
Air System Steaming and Water System High Temperature/ High Pressure System	152-238	40	64	64	75	89	89
Medium Temperature/ Medium Pressure System	122-151	40	50	64	64	75	75
low Temperature/ low Pressure System	94-121	25	40	40	50	50	50
low Temperature System	49-93	13	25	25	40	40	40
Steaming Condensator of Watering System	Any Temperature	25	25	40	50	50	50

Equivalent Thickness of Surface Cooling Prevention

Environment Temperature	Relative Humidity	System Working Temperature
Environment Temperature	Relative Humidity	2℃	7℃	13℃
38℃	50%-60%	25	25	25
	70%	40	30	30
	80%	75	60	50
	85%	100	90	75
32℃	50%-60%	25	25	25
	70%	25	25	25
	80%	50	50	40
	85%	80	75	60
27℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	65	50
21℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	50	40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.

Product size of the glass wool pipe

Density(kg/m3)	Thickness(mm)	Length (mm)	Diameter (mm)
48-80	25-90	1000,1200	18-529

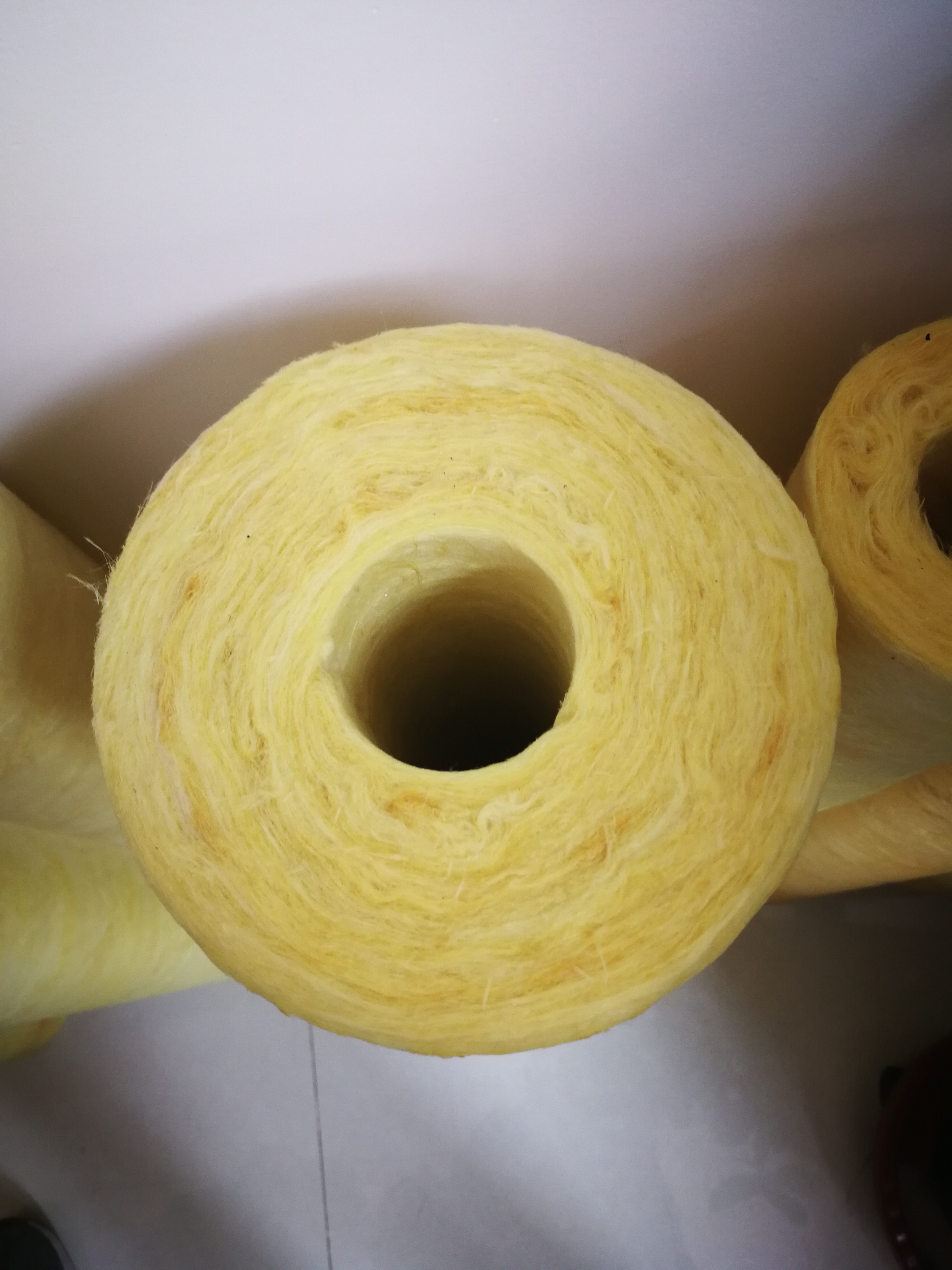

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 3

Facing For glass wool Pipe

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 4

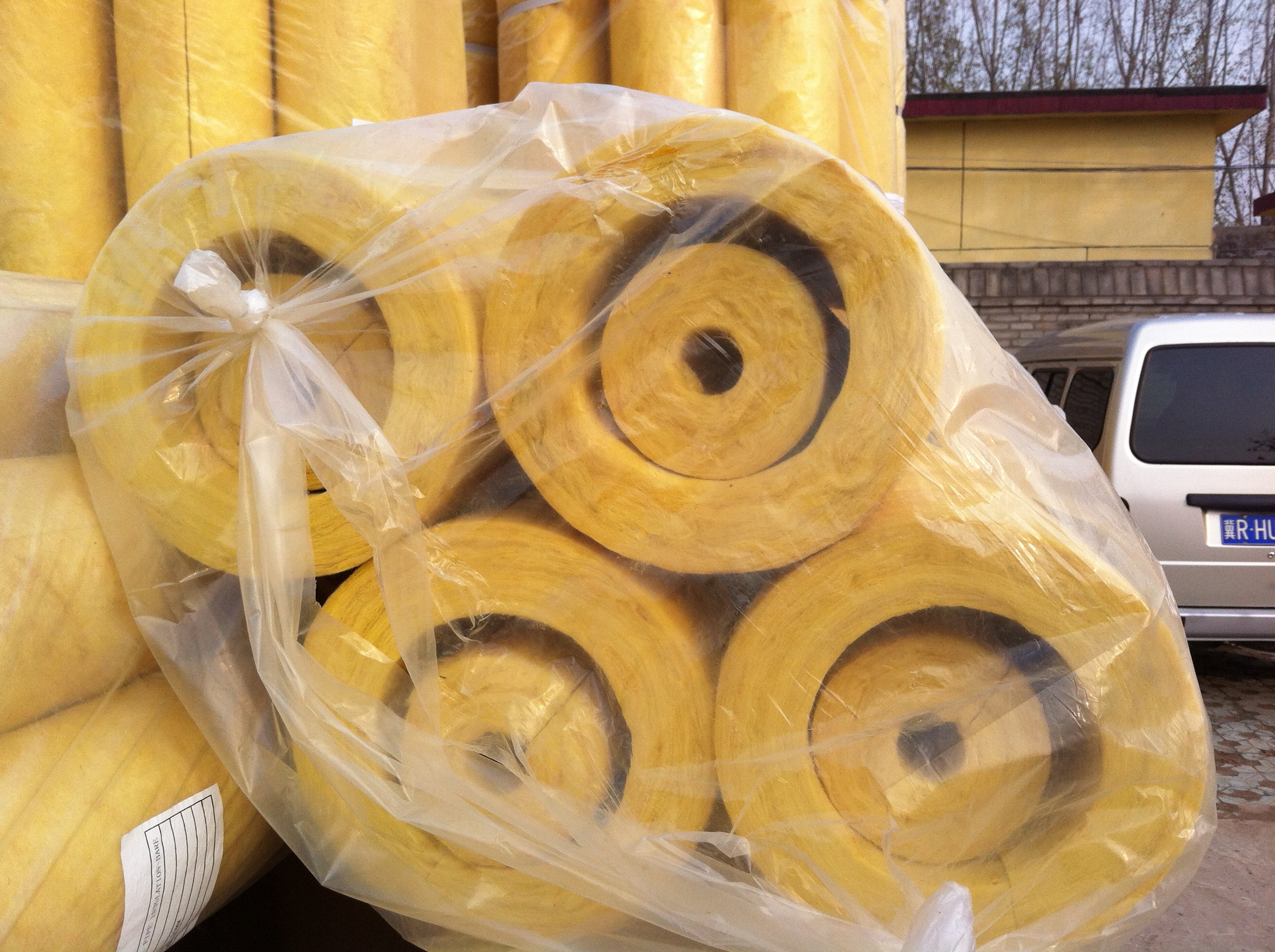

Packing

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 10-15 work days after placing order.

Q4:About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A4:The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
